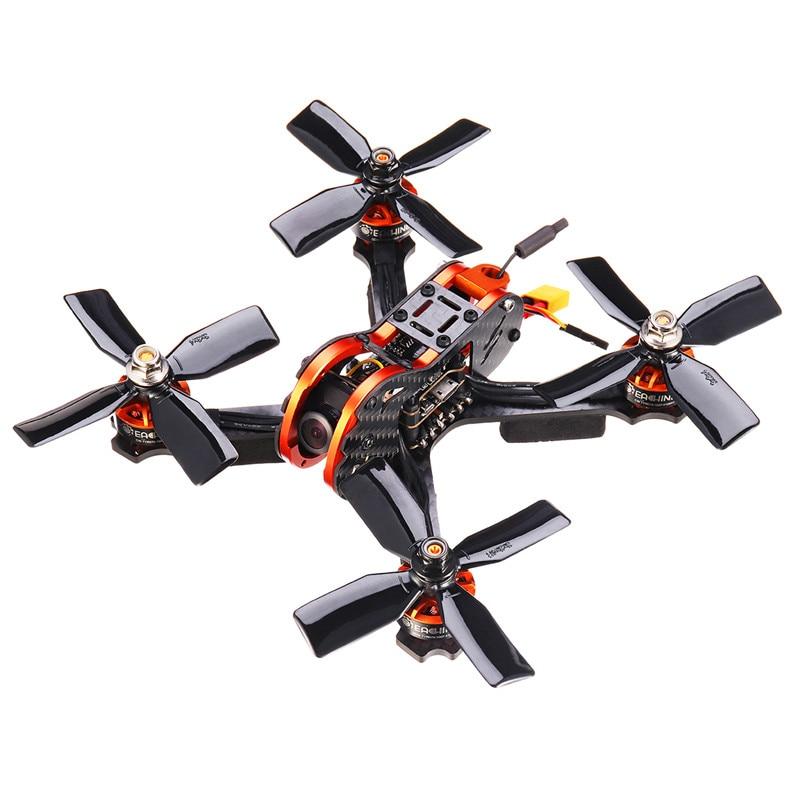

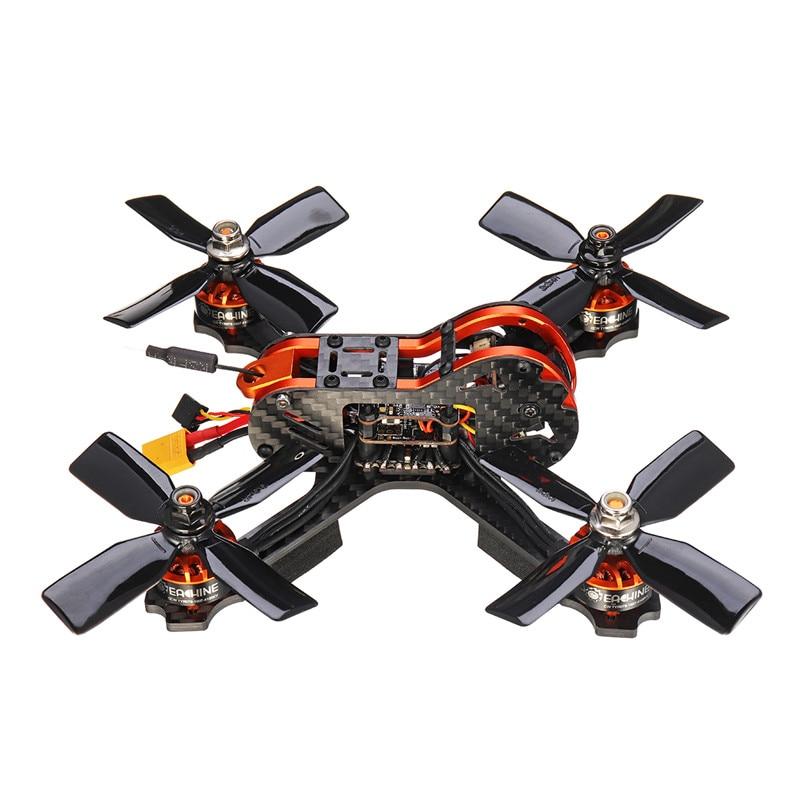

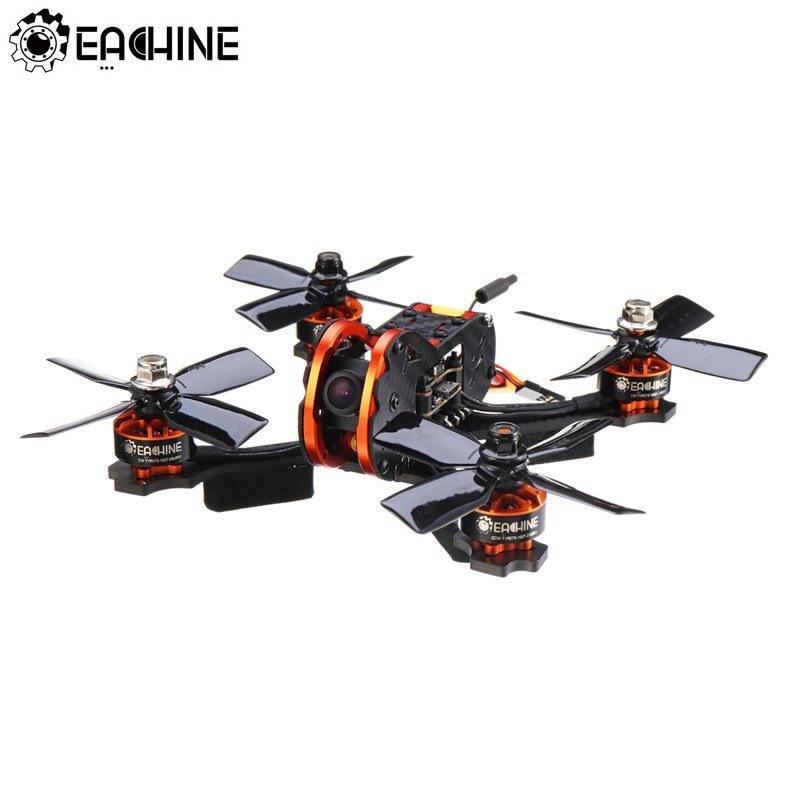

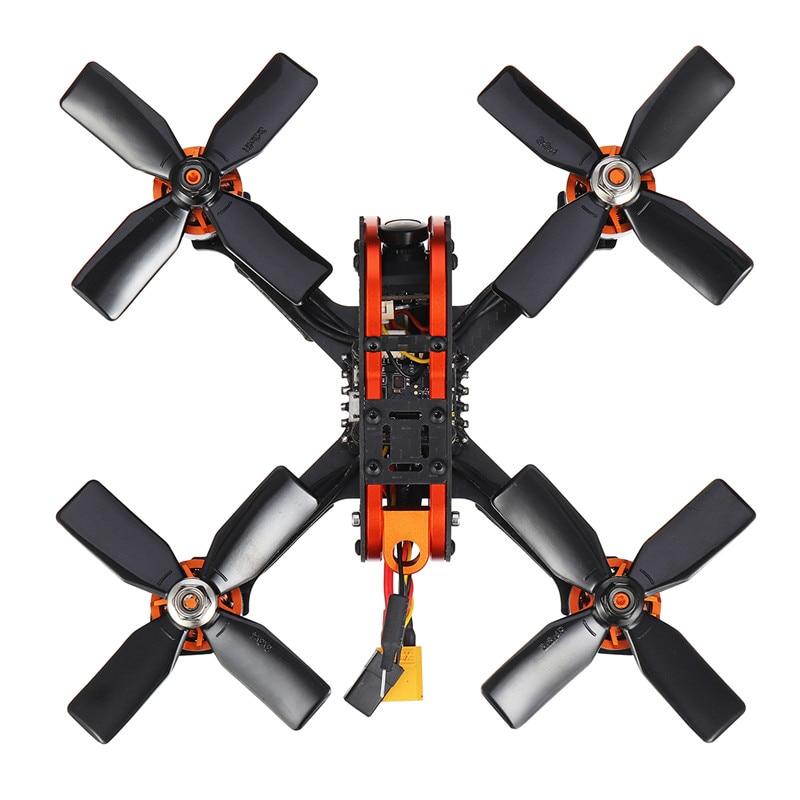

FPV Racing Drone – High-Performance Foldable Racing Drone for Ultimate FPV Flying Experience
Experience the thrill of high-speed aerial racing with our FPV Racing Drone, designed to deliver an unbeatable combination of sleek style, durability, and advanced technology. Perfect for both beginners and experienced pilots, this foldable racing drone offers exceptional versatility and performance at an affordable price, making it a must-have for drone racing enthusiasts.
Sleek, Foldable, and Lightweight Design
Weighing only 17.8 grams (including wires), the drone’s compact and foldable frame makes it easy to transport and store, so you can take it anywhere and enjoy flying on the go. The aerodynamic design not only enhances speed and agility but also adds a stealthy look that stands out in the racing field.
Powerful Components for High-Speed Racing
Equipped with two pairs of 1607 2800KV brushless motors (clockwise and counterclockwise), this drone delivers rapid acceleration and stable flight control, allowing you to maneuver through complex courses with precision. The 4-in-1 20A BLHeli_S ESC ensures smooth power delivery and efficient motor control for responsive handling.
Advanced Flight Controller and Camera System

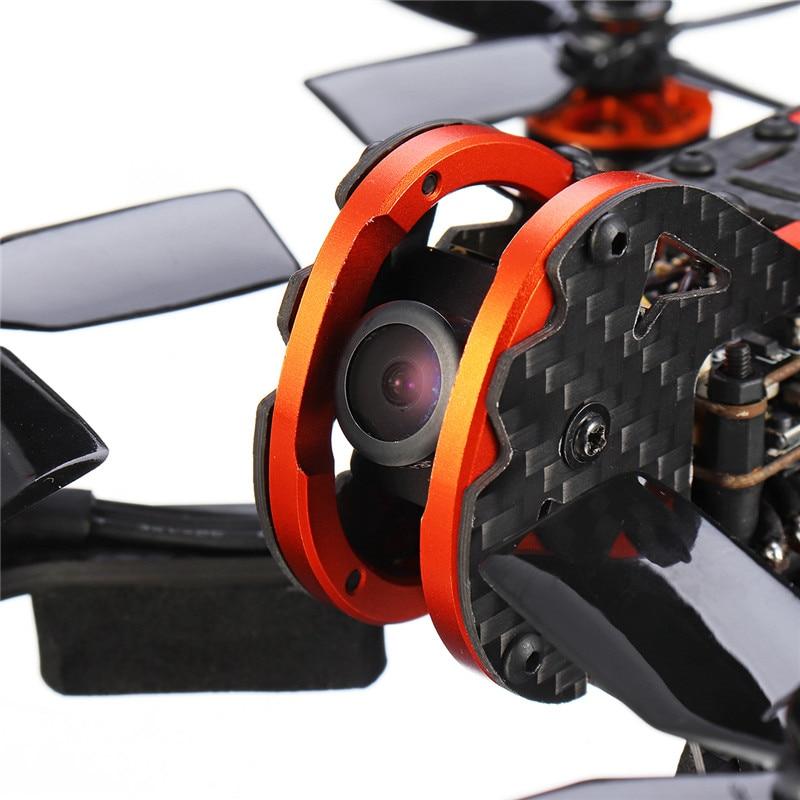

The FPV Racing Drone features a customized F4 flight controller for reliable, real-time flight adjustments and enhanced stability. The integrated 700TVL CMOS camera with a standard 2.1mm lens captures crisp, clear footage with electronic exposure and shutter speeds ranging from 1/50 to 1/100,000 seconds, delivering sharp visuals even in varying lighting conditions.
Versatile Video Transmission with Adjustable Power
Stay connected with a 5.8G 40CH VTX (Video Transmitter) that supports three power levels—0mW, 25mW, and 200mW—giving you the flexibility to switch transmission power based on your flying environment. Whether flying indoors or in open areas, you’ll enjoy stable, low-latency FPV video transmission.
Durable and Efficient Flight Components
Built to withstand the demands of racing, the drone uses high-quality materials and components to ensure long-lasting durability. The low power consumption flight camera runs at just 70mA, while the drone operates smoothly in temperatures ranging from -20°C to 60°C and humidity levels between 0% and 98%.
| Item | Specification |
| 140mm Racing Frame Kit |
Wheel base: 140mm
Frame arm thickness: 3mm
Upper plate thickness: 1mm
Side plate thickness: 1mm
Frame kit material: 3K carbon fiber & CNC 6065 aluminium
|
| 1607 2800KV 2-4S Brushless Motor |
KV: 2800KV
Lipo cell: 2-4S
Weight: 17.8g (includes wires)Output shaft length: 14mm
Maximum pull: signal 630g (4S 3030 4-blade propeller)
Maximum power: 350W
Configu-ration: 9N/12P
Mounting holes distance: 12*12mm
Mounting holes: ?M2
Bearing: NSK
N52 Strong NdFeB Magnet
Recommend propeller: 3 inch
|
| 4 IN 1 20A BLHeli_S ESC |
Continuous current: 20A
Pe ak current: 25A (10S)
BEC output: no
Input voltage: 2-4S
Main control chip: 48mhz EFM8BB2
Firmware upgrade: Supports Dshot600/BLHeli_S/Oneshot125
MOS: 3*3
MOS type: vs3610ae 30v64a
|
| Customized F4 Flight Controller |
Main control chip: STM32F411
Sensor: ICM20602 6-axis
Integrated OSD
PPM/DSM/IBUS/UAR share: UART1-RX
Mounting holes distance: 20*20mm
Weight: 24g
PID circulation rate and refresh rate can up to 32kHz
Supports Betaflight/cleanflight/inav firmware
|
| 700TVL CMOS Camera |
Case size: 19mm*19mm
Weight: 9.5g
Total pixels: PAL: 1020H×596V (0.61MP); NTSC: 1020H×508V (0.52MP)
Effective pixels: PAL: 976H×582V (0.57MP); NTSC: 976H×494V (0.48MP)
Signal system: PAL/NTSC switchable
Resolution ratio(horizontal center): 700TVL
Video output: 1.0Vp-p/75?
Automatic gain control: 0.25/0.50/0.75/1.00, up to 55dB
White balance: off
Exposure mode: electron exposure
Electronic shutter: 1/50(1/60) - 1/100000 S
Gamma correction: 0.45/1.0
Synchronization method: inter-sync
Camera lens: standard 2.1mm
Lens operating voltage: DC 5-12V
Working current: 70mA (low power consumption)
Working temperature: -20?~-60?
Humidity: 0%~98%
|
| 5.8G 40CH 0mW/25mw/200mw switchable VTX |
Supports TBS SmartAudio
Transmitting power: 0mW/25mW/100mW/200mW switchable
Channel: 40CH
Full video format: NTSC/PAL
Input voltage: 7V~24V
Power dissipation: +12V/600MW
Size: 25×20×6mm
Weight: ?3.2g (except antenna)
With copper pipe mini antenna (ipex antenna)
Make sure the antenna is installed at the output end before powering up to avoid damaging internal components.
|
| 3030 4-blade propeller |
Material: PC
Mounting hole: 5mm
Center thickness: 6mm
Quantity: 10 pairs
Color: black, red, yellow, green
Weight: 5g a pair
Delivery color randomly (10 pairs of propellers are the same color)
|
| Lipo Battery | Not included \nRecommend 2-3S 450-650mah |
Package Includes Everything You Need
- 1 x 140mm Racing Frame Kit
- 2 x 1607 2800KV Brushless Motor CW
- 2 x 1607 2800KV Brushless Motor CCW
- 1 x 4-in-1 20A BLHeli_S ESC
- 1 x Customized F4 Flight Controller
- 1 x 700TVL CMOS Camera
- 1 x 5.8G 40CH Switchable VTX (0mW/25mW/200mW)
- 2 x 3030 4-Blade Propeller CW
- 2 x 3030 4-Blade Propeller CCW
Why Choose Our FPV Racing Drone?
- Foldable and Portable: Easy to carry and perfect for on-the-go racing adventures.
- Lightweight & Durable: High-strength components designed to handle fast-paced racing conditions.
- Advanced Flight Control: Customized F4 controller ensures precision and stability in flight.
- High-Quality Camera & Video Transmission: Capture clear FPV footage with adjustable power settings for different environments.
- Perfect for Beginners and Pros: Intuitive controls combined with powerful hardware provide an enjoyable experience for pilots at any skill level.
Get your FPV Racing Drone now and take your drone flying experience to new heights with unmatched speed, control, and fun!
